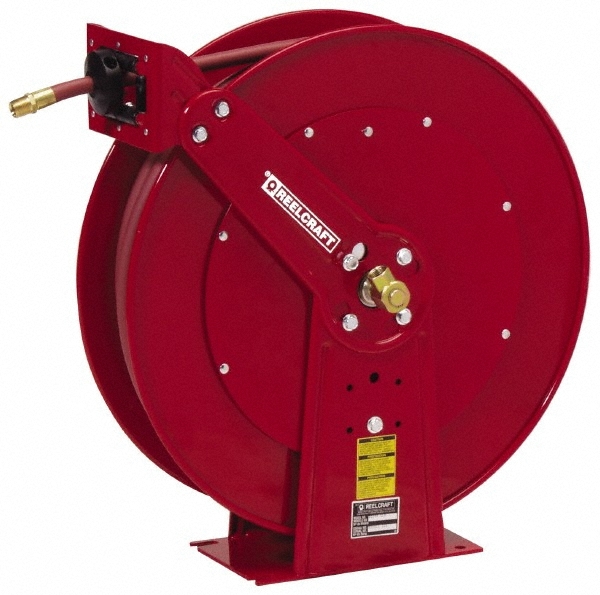

Heavy Duty Spring Retractable Reels

Air/Water/Oil/Grease - 3/8", 1/2", 3/4", 1" I.D.

Reelcraft’s Series 80000 and D80000 spring retractable reels incorporate the most current design

and manufacturing techniques to increase service life and performance. The all- steel construction

and a baked-on powder coat finish combine to produce a rugged, corrosion-resistant product suitable

for a wide variety of heavy duty applications.

Series D80000 reels are also supplied with Reelcraft’s ball-bearing style swivel.

Hose anti latch-out feature ensures hose retracts every time.

Guide arm is field adjustable for wall, ceiling, or truck mounting positions.

Dual pedestal base and guide arm design are structurally reinforced.

Five-in-one, heat-treated aluminium casting incorporates main shaft, ratchet, spring arbor and

inlet/outlet plumbing in one-piece casting.

Containerized spring assembly provides safer and easier handling during maintenance.

Two sealed ball bearings for smooth rotation of main shaft.
