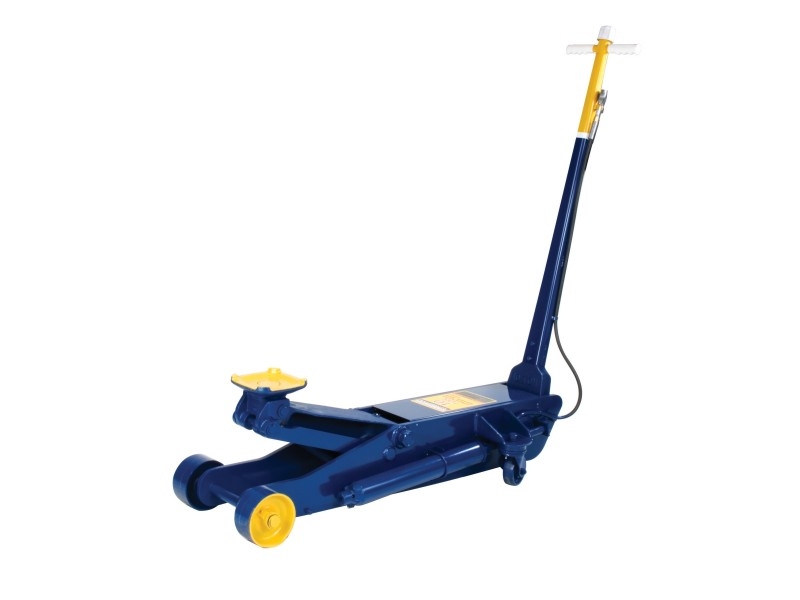

Hein Werner HW93662 10 Ton Air/Manual Service Jack

Home > Jacks/Hydraulic Lifting Equipment > Jacks > Floor Jacks >

List Price: $12,178.22

Our Price: $7,999.00

Save $4,179.22!

Product Code: HW93662

Qty:

Description

Features:

* Lifting trucks, trailers, and buses by the axle, differential, or frame
* Dual piston action provides speed to contact and power to lift
* Long chassis for hard to reach points
* Handle adjusts to three pumping positions
* T handle with release knob for exact positioning of load
* Sealed hydraulic unit keeps out grit, grime and moisture
* Large full swivel saddle and ball bearing caster make positioning easy
* Cast lift arm for heavy loads
* Operates manually or with air
* Patented “Speed Pak” reduces handle pumping
* Uses standard shop air 110-175 PSI pressure
* Made in U.S.A.

Specifications:

* Capacity: 10 Tons
* Minimum Height: 6-3/4-Inches
* Maximum Height: 25-1/2-Inches
* Power Raise: 18-3/4-Inches
* Saddle Diameter: 8-1/2-Inches
* Handle Length: 56-Inches
* Chassis Length: 53-1/2-Inches
* Chassis Height: 9-1/2-Inches
* Width Wheel to Wheel: 20-1/2-Inches
* Min. PSI For Rated Load: 140
* Weight: 420-Pounds
